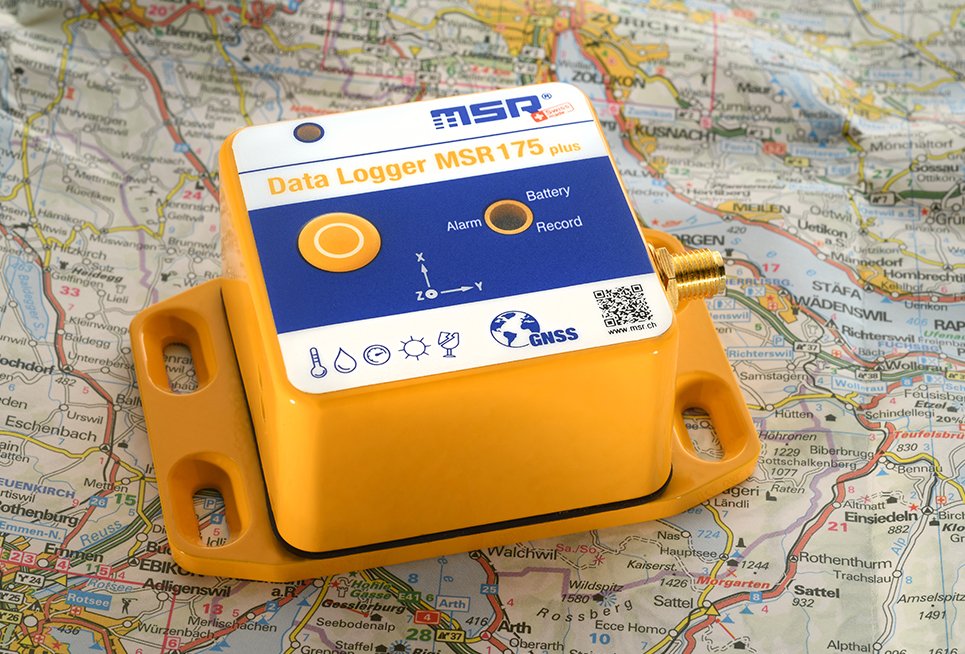

MSR175plus Transportation Data Logger with GPS Malaysia

Category: MSR Dataloggers

  • Transportation Data Logger with GPS Tracking: MSR175plus for shock and climate



    MSR175 Transportation Data Logger with GPS

    MSR175B56T6H3P5AA5L2G

    • Internal Sensors for 3-Axis Acceleration, Air Pressure, Light, Humidity and Temperature

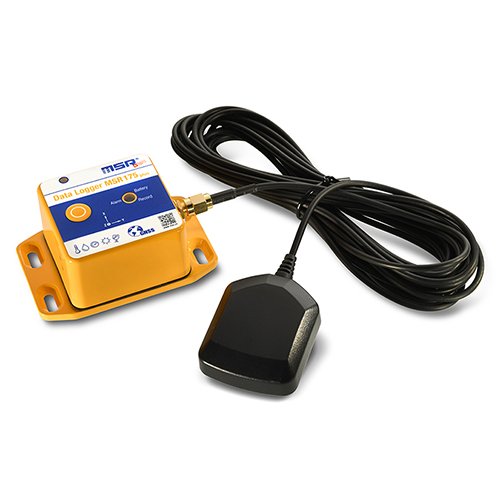

    • Includes GPS Receiver, Recording Location When Events Occur to File
    • Records in Range of ±15g/±200g and -20°C to 65°C Temperature Range
    • Simultaneous Recording of Both 15g and 200g Acceleration Sensors
    • Stores Over 4 Million Measured Values, Which is Sufficient for more than 1,000 Shocks and Jolt Events
    • Rechargeable 2400 mAh Lithium Polymer Battery
    • Data from any number of loggers can be merged synchronously into a single Data Record
    • Made in Switzerland, Swiss Made Swiss Made - Made in Switzerland

    Includes USB Cable, Mounting Screws, and Quick Start Guide. MSR Dashboard Software Available as a Free Download

    NOTE: GPS Coordinates are recorded to the device and available when the data is downloaded. Real-time location is not available.



    MSR175plus Transportation Data Logger with GPS Specifications

    Measured Parameters 3-Axis Acceleration
    Air Pressure
    Light
    Humidity
    Temperature
    GPS
    GNSS Position Data GPS (optional: GLONASS, Galileo, Beidou)
    Acceleration Number of Sensors: 2
    Measurement Range: ±15g and ±200g
    Accuracy (±15g): ±0.15g (25°C)
    Accuracy (±200g): ±2g @ 25°C
    Measurement Rate (±15g): 1,600 Samples per Second
    Measurement Rate (±15g): 6,400 Samples per Second
    Air Pressure Number of Sensors: 1
    Measurement Range: 0 to 2000mbar absolute
    Accuracy: ±2.5mbar (25°C)
    Measurement Rate: 1 Sample per 10 Minutes
    Light Number of Sensors: 1
    Measurement Range: 0 to 65,000 lx
    Accuracy: 500 nm (Max Sensitivity)
    Measurement Rate: 1 Sample per 10 Minutes
    Humidity Number of Sensors: 1
    Measurement Range: 0 to 100% RH
    Accuracy (10 to 85%RH): ±2% (25°C)
    Accuracy (Other Ranges): ±4% (25°C)
    Measurement Rate: 1 Sample per 10 Minutes
    Temperature Measurement Range: -20°C to 65°C;
    Accuracy: ±0.5°C (-10°C to 65°C)
    Measurement Rate: 10 Minutes
    Data Storage Capacity Over 4 Million Total Recorded Readings
    Key Start Measurement/Retrieve Status/Test GPS Reception
    Color Amber
    LEDs Blue: Recording Indicator
    Red: Alarm Indicator
    Yellow: Battery Charge Indicator
    Power Supply Rechargeable 2400 mAh Lithium Polymer Battery (Removable)
    (USB Connection to PC recharges unit)
    Battery Life Recording Time with Activated GPS Tracking: 8 Weeks
    Recording Time without Activated GPS Tracking: 1 Year
    Enclosure Encapsulated Poly Carbonate (PC)
    Standards Compliance IP65, RoHS/WEEE
    Communications Interface USB
    Storage Conditions Temperature: 5°C to 45°C
    Humidity: 10 to 95% RH, non-condensing
    Operating Conditions Temperature: -20°C to 65°C
    Software MSR175 Dashboard, MSR ReportGenerator, MSR ShockViewer (Basic Version)
    Software Compatible Windows 10, 8, 7, Vista and XP
    Weight 140 grams (0.30 lbs)
    Dimensions 51mm x 32mm x 77mm (2.0" x 1.25" x 3.0")
